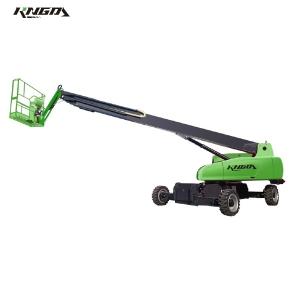

Diesel Telescopic Boom Lift Working Height 40m Machine Weight 21800kg
Product Features
●A medium-sized diesel telescopic boom lift is a heavy-duty machine that is used for lifting people and heavy loads to high heights. It has a strong and sturdy structure with a telescopic boom that can extend and retract, allowing it to reach various heights. The lift is powered by a diesel engine, which provides the necessary power to operate the machine efficiently.
●This type of boom lift is known for its versatility and durability. It is capable of reaching high heights and has a large load capacity, making it suitable for a wide range of tasks, such as construction, maintenance, and repairs. The lift is equipped with safety features, such as stabilizers and safety harnesses, to ensure the safety of the operators.
●Overall, the medium-sized diesel telescopic boom lift is a powerful and reliable machine that is designed to handle heavy lifting tasks at high heights.
| Model | TB38J |
| Size | Metric |
| Maximum Working Height | 40.4m |
| Maximum Platform Height | 38.4m |
| Maximum Horizontal Outreach | 24m |
| Platform Size | 2.44X0.91m |
| Length-Stowed(jib stowed/extended) | not able to stow/14.1m |
| Width(axle retracted/extended) | 2.5m/4.1m |
| Height-Stowed | 3.08m |
| Wheelbase | 3.96m |
| Ground Clearance | 0.4m |
| Performance | |
| Maximum Lifting Capacity/(Non-restricted) | 480Kg/300Kg |
| Platform Rotation | ±90° |
| Vertical Jib Rotation | 135° |
| Turntable Rotation | 360°Continuous |
| Drive Speed-Stowed | 5Km/h |
| Drive Speed-Raised | 1.1Km/h |
| Gradeability | 45% |
| Maximum Working Slope | 5° |
| Turning Radius-inside(axle retracted/extended) | 3.83m/2.69m |
| Turning Radius-outside(axle retracted/extended) | 6.24m/6.5m |
| Drive &Steer Mode | 4×4×4 |
| Tyre Size | 385/65-22.5 |
| Power | |
| Power Supply | 55Kw@2400rpm~2600rpn |
| Fuel Tank Capacity | 150L |
| Hydraulic Oil Tank Capacity | 250L |
| Control Voltage | 12V |
| Weight | |
| Machine Weight | 21800Kg |
| Standard Compliance | |
| EN280 GB25849 | |
※ The picture and technical information may vary by the update policy, the changes will be without prior notice.
Company Profile
JINDA's predecessor began to manufacture MEWPs in 2013, one of the earliest manufacturers in China. In 2020, JINDA HEAVY INDUSTRY (TIANJIN) CO., LTD was officially founded in Tianjin city, China. JINDA specialises in the research, manufacture, sales and service of a wide range of access solutions. Since it entered the market, JINDA has obtained more than 177 authorized patents and tasted 29 invention patents. JINDA is committed to providing safe and dependable products. Our mission is to terminate hazardous aerial work. The company's technical personnel account for more than 60%, and it has built an intellectual property protection system for its product technology.
HUNAN KINGDA INTELLIGENT ACCESS MACHINERY CO., LTD is a subsidiary of JINDA located in the city of Changsha and mainly engages in international business.
